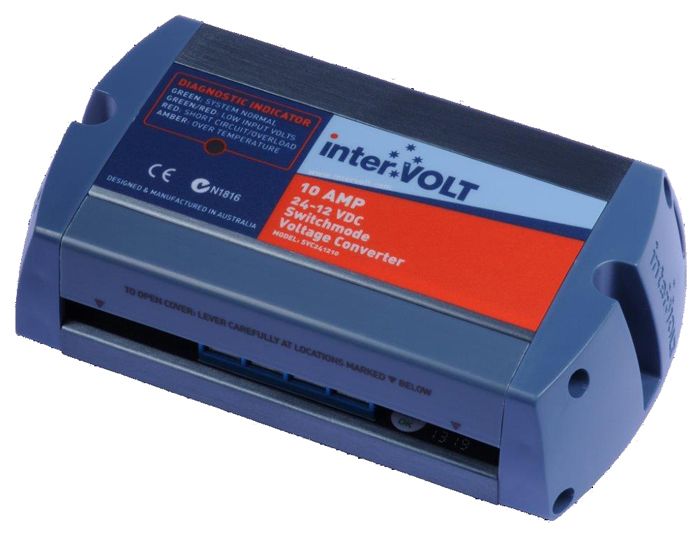

Voltage Converter Mini Non-isolated 24-12V 10A

Product Code :SVC241210
Product Weight : 0.0
Product Dimensions : 0.0
Unit of Measure : EACH
Brand : interVOLT
Availability :

Description:

interVOLT’s SVC Voltage Converters Non-isolated Mini Series are a condensed version of the tried and proven Maxi Series reducers packed with all the same features and benefits.

Designed for marine, automotive and industrial applications where an efficient, cost effective solution for 24VDC – 12VDC power conversion is required.

Model Input Voltage Output Voltage Continuous Rating Peak Load Rating Length Overall Width Overall Height Overall
SVC241207 19 – 33VDC 13.7VDC 7 Amps @ 13.7VDC 10 Amps @ 13.7VDC 120mm (4.725”) 80mm (3.150”) 40mm (1.575”)
SVC241210 19 – 33VDC 13.7VDC 10 Amps @ 13.7VDC 13 Amps @ 13.7VDC 145mm (5.710”) 80mm (3.150”) 40mm (1.575”)
