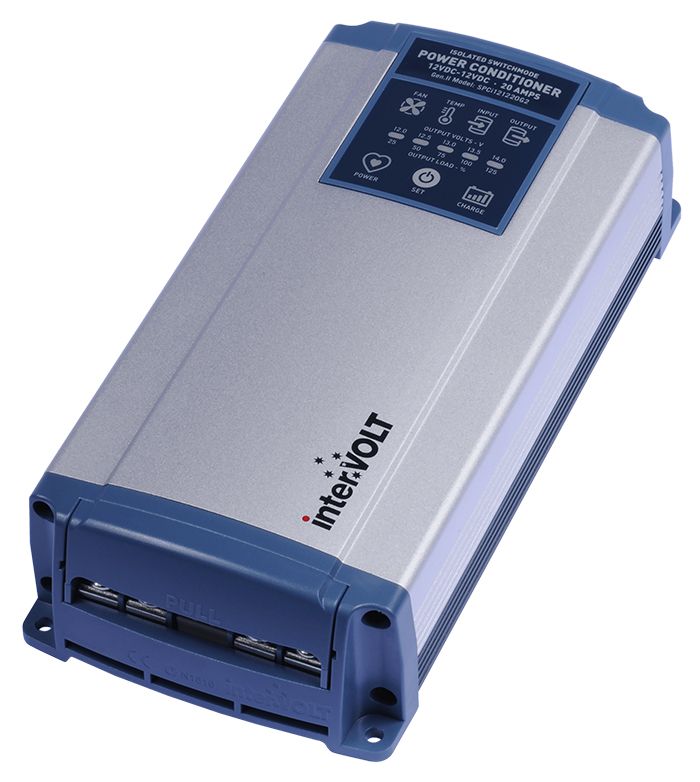

Power Conditioner Maxi Isolated 12-12V 20A
Product Code :SPCI121220G2
Product Weight : 0.0
Product Dimensions : 0.0
Unit of Measure : EACH
Product Weight : 0.0
Product Dimensions : 0.0
Unit of Measure : EACH
Brand :
Availability :
Description:
The interVOLT’s SPCi Power Conditioners Isolated Maxi are known for resolving many of the stabiliser issues associated with DC power in vehicles and vessels. They are in fact a converter, stabilizer, isolator and regulator all built into a single innovative package.
| Model | Isolated | Input Voltage | Output Voltage | Continuous Rating | Voltage Rating | Length Overall | Width Overall | Height Overall |
|---|---|---|---|---|---|---|---|---|
| SPCi121210G2 | Yes | 10.5 – 16VDC | 12.0 – 14.0V | 10 Amps @ 40°C | 12–12 VDC | 170mm | 110mm | 55mm |
| SPCi121220G2 | Yes | 10.5 – 16VDC | 12.0 – 14.0V | 20 Amps @ 40°C | 12–12 VDC | 230mm | 110mm | 55mm |
| SPCi242410G2 | Yes | 20 – 33VDC | 24.0 – 28.0V | 10 Amps @ 40°C | 24–24 VDC | 170mm | 110mm | 55mm |
| SPCi242420G2 | Yes | 20 – 33VDC | 24.0 – 28.0V | 20 Amps @ 40°C | 24–24 VDC | 230mm | 110mm | 55mm |
