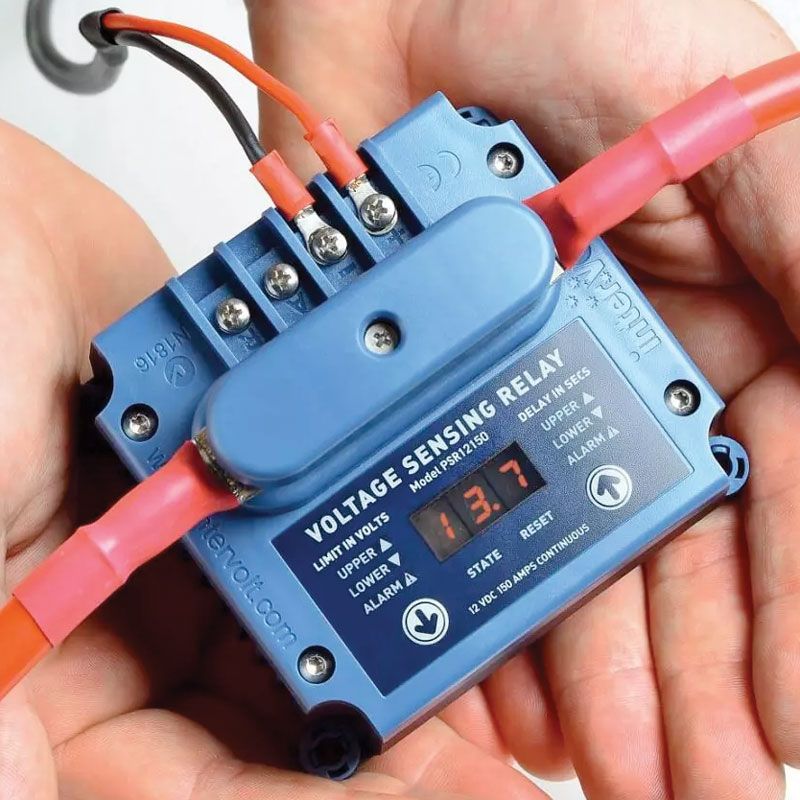

Voltage Sensing Relay 12V 150A

Product Code :PSR12150
Product Weight : 0.505
Product Dimensions : 0.0
Unit of Measure : EACH
Brand : interVOLT
Availability :

Description:

The innovative design of the interVOLT PSR replaces traditional electro-mechanical relay devices used in 12/24 Volt DC applications by removing all mechanical parts to produce a completely solid state product with a myriad of added features.

Uses:
  • Combining of battery banks for charging and/or load sharing.
  • Paralleling battery banks as emergency supplies.
  • Switching loads at desired voltages both on and off.
  • Protecting equipment from under-voltage supply.
  • Isolating batteries at desired voltages both on and off.
  • Safe and reliable remote switching of heavy loads.
    • Features
  • 12 Volt
  • 1150 Amps @ 50°C
  • 500 Amps – 10 Secs
  • IP67 rating
  • Programmable Relay
  • Topology – solid state Mosfet (metal oxide semiconductor field-effect transistor) switching circuit.
  • Control Voltage – the upper and lower control voltage limits are user adjustable in 0.1 Volt increments from 9.0 Volts to 18.0 Volts
  • Time Delay – the upper and lower time delay limits are user adjustable in 1.0 second increments from 001 to 255 seconds.
  • Contact State – the contact state is user selectable for normally open (N/O) or normally closed (N/C). The factory default is normally open.
