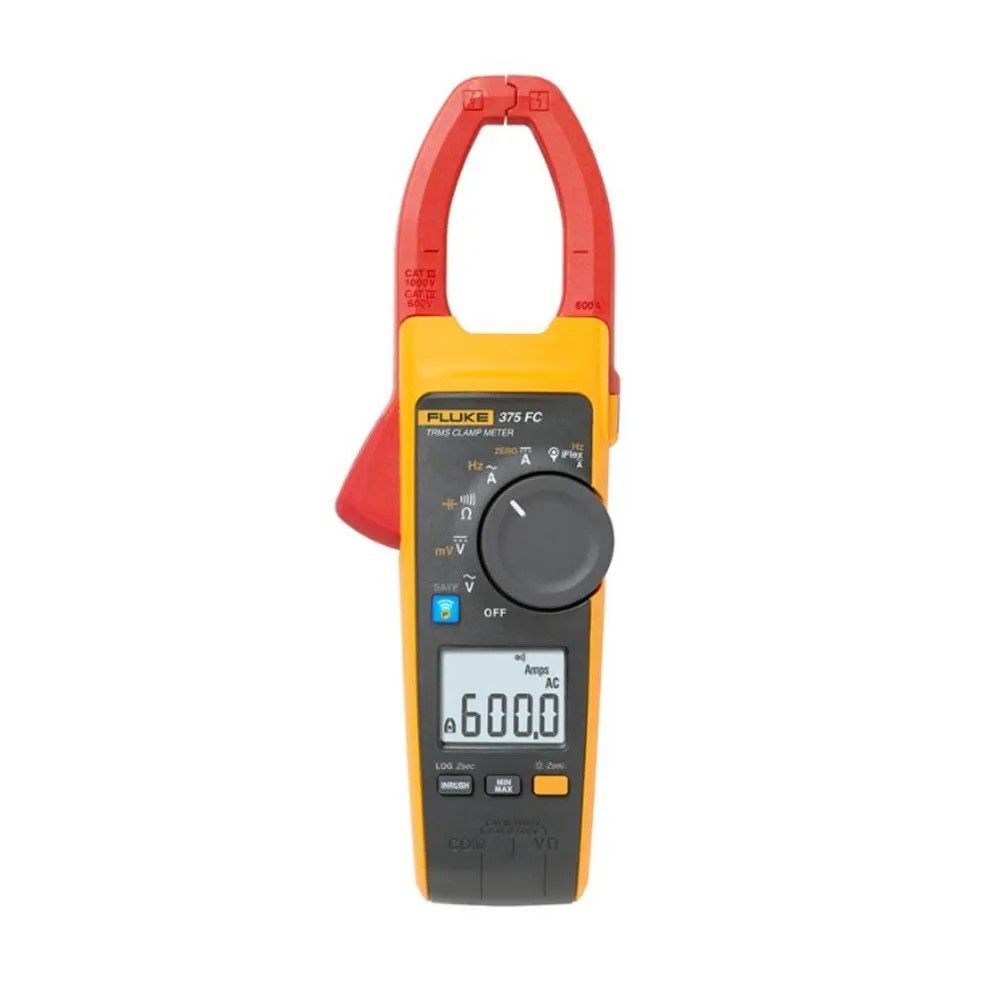

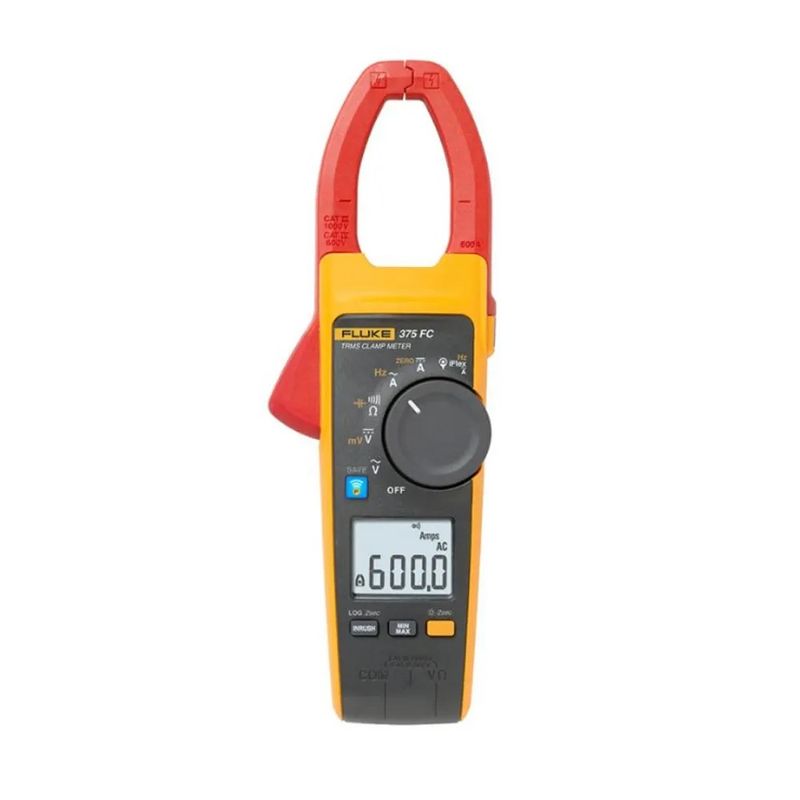

375 FC True-RMS AC/DC Clamp Meter
Product Code :FLU375FC
Product Weight : 0.0
Product Dimensions : 0.0
Unit of Measure : EACH
Brand : Fluke
Availability :
Product Weight : 0.0
Product Dimensions : 0.0
Unit of Measure : EACH
Brand : Fluke
Availability :
Description:
Key features
High performance clamp meter that measures very low voltage and high resistance

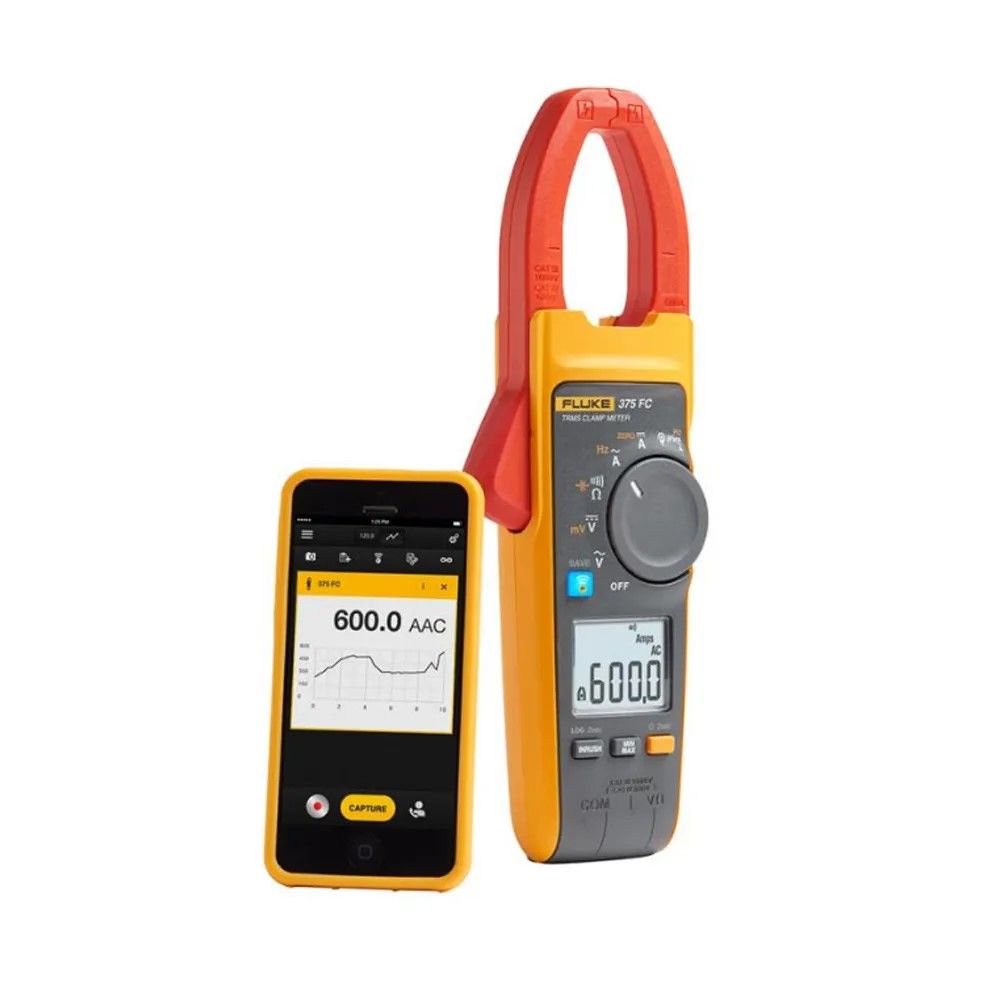

Transmits measurements to your smartphone via Fluke Connect® so you can view them at a safer distance
Measures AC and DC current to 600 A, and AC and DC voltage to 1000 V
Measures AC current to 2500 A AC with optional iFlex flexible current probe
| Specification | Details |
|---|---|
| AC Current via Jaw | Range: 600.0 A |
| Resolution: 0.1 A | |
| Accuracy: 2% ±5 digits (10 Hz to 100 Hz) 2.5% ±5 digits (100 Hz to 500 Hz) |
|
| Crest Factor (50 Hz/60 Hz): 3 @ 500 A | |
| 2.5 @ 600 A Add 2% for C.F. > 2 |
|
| AC Current via Flexible Current Probe | Range: 2500 A |
| Resolution: 0.1 A (≤ 600 A) 1 A (≤ 2500 A) |
|
| Accuracy: 3% ±5 digits (5 Hz – 500 Hz) | |
| Crest Factor (50 Hz/60 Hz): 3.0 at 1100 A 2.5 at 1400 A 1.42 at 2500 A |
|
| Add 2% for C.F. > 2 |
